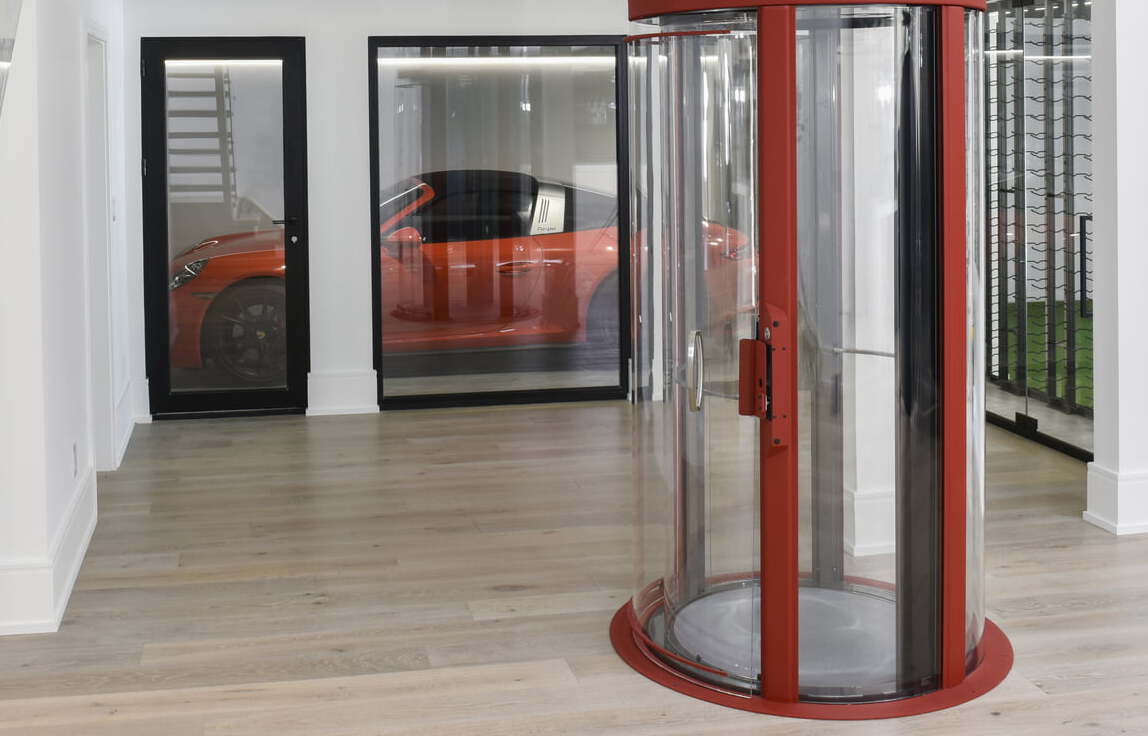

Vuelift^® specifications

Key features

Integrated hoistway for extreme floorplan placement flexibility
Energy-efficient winding drum drive train system
Automatic operation
Illuminated push-button hall call stations
Bifold glass cab gate
Balcony attachment or through-the-floor setup
Integrated touch-pad phone
Automatic on/off LED cab lights and ventilation fan
Textured black powder-coated frame

Safety features

Emergency battery back-up for cab lighting and lowering
Manual lowering
Emergency alarm and stop switch
Electrical circuit overspeed
Safety brakes
Elevator door interlocks
In-use indicator lights on hall call stations

Optional features

White, silver, or custom powder-coated frame color
Straight-through, 90-degree and three-sided entry/exit configurations

Common to all Vuelift^® models

Maximum travel 50ft (15.2m), 55 ft (16.7m) with variance, and up to 6 stops

Pit Depth: 4"–12" (102–305mm)

All models offer a short ramp option when a pit is not possible

Power Supply: 230V/1PH/50–60Hz (30 amps) and one 120V/1PH/50–60Hz (15 amps)

	Round Acrylic	Round+ Glass	Octagonal Acrylic	Octagonal Glass	Octagonal+ Glass	Mini
CAPACITY	840lb (381kg)	950lb (431kg)	840lb (381kg)	950lb (431kg)	950lb (431kg)	500lb (227kg)
NOMINAL SPEED	0.16m/s (32fpm)	0.2m/s (40fpm)	0.16m/s (32fpm)	0.2m/s (40fpm)	0.2m/s (40fpm)	0.15m/s (30fpm)
CAB FLOOR AREA	13sq.ft. (1.3sqm)	15sq.ft. (1.4sqm)	12sq.ft. (1.2sqm)	12sq.ft. (1.2sqm)	15sq.ft. (1.4sqm)	8.25sq.ft. (0.75sqm)

Are you inspired yet?

Click the links below to access resources to get you started designing with the Savaria^® Vuelift^®.

Drawings

BIM Objects

Master Specification

Model Comparison Guide

Planning Guide – Octagonal and Round

Planning Guide – Mini

Continuing Education Course:AIASAV101 – Guide to Home Elevators and AIASAV301 – Introduction to Vuelift Elevators
