Beat the barriers with the V-1504

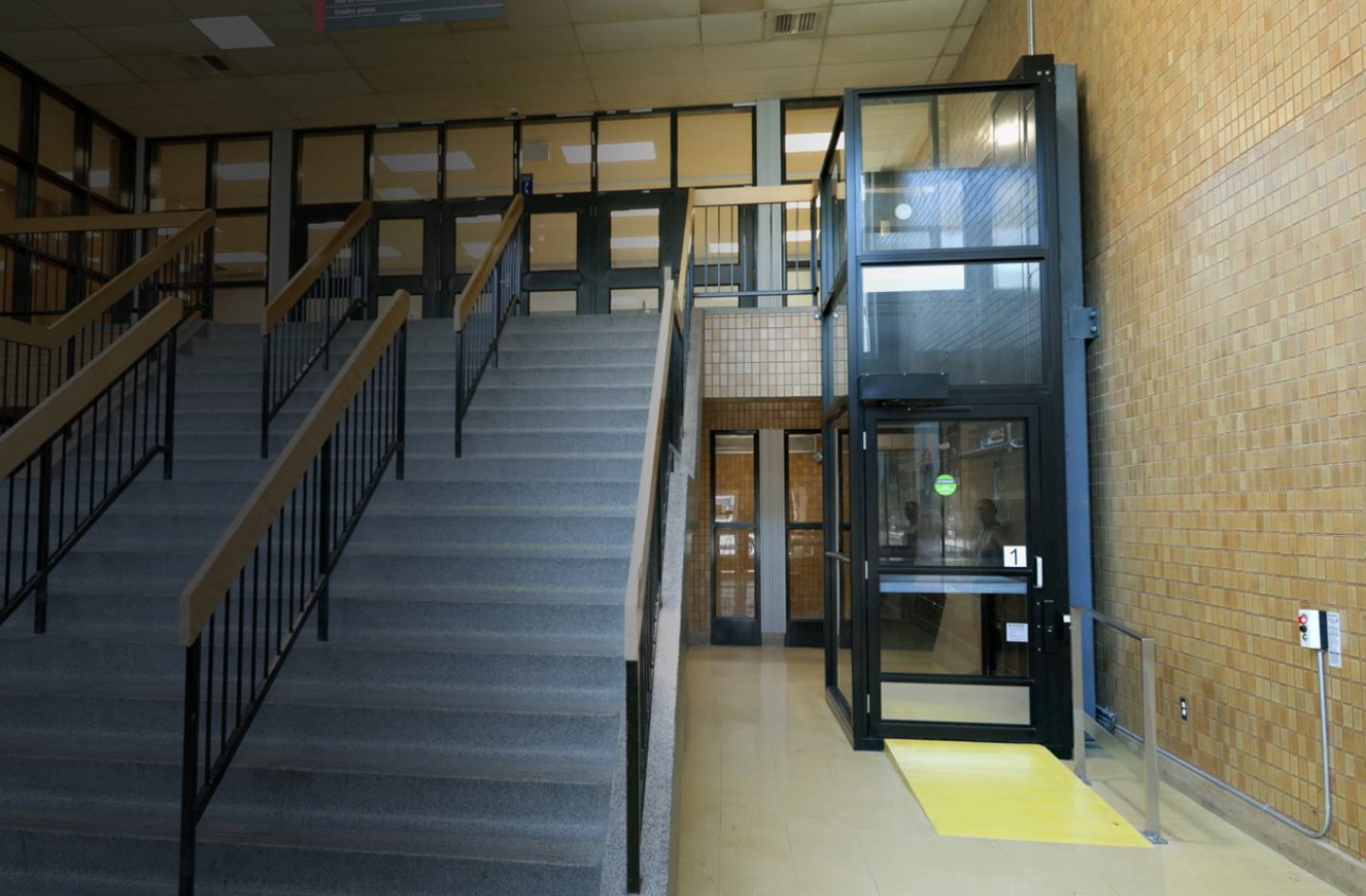

This metropolitan recreation center entrance features a lengthy staircase to the mezzanine. The V-1504 Enclosure lift was installed beside the stairs to offer easy access that complements the building’s design. Finished in black, the lift mirrors the stair railings and surrounding door and window elements. Use of an access ramp rather than a pit simplified the site preparation construction.

SPECIFIED ON THIS PROJECT FOR:

V-1504 enclosure is ideal for mezzanine access

Project Specs

Number of Landings: 2
Entrances: 2 (straight-through access)
Capacity: 750 lb (340kg)
Nominal Speed: 20 fpm (0.10m/s)
Total Travel: 118 ¾" (300cm)
Platform Size: 36" x 60" (914 x 1524mm)
Pit Depth: None, access ramp was installed
Power Supply: Single-phase, 120 volt, 20 amp
Drive: 2:1 chain hydraulic, no machine room
Color: Black
Upper Landing Gate: Tempered glass insert
Lower Landing Door: Tempered glass insert
