Ready for game day and campus life – meet the Orion

Gryphon Alumni Stadium is a multipurpose space that supports everything from game days to everyday campus activity. The Orion LU/LA (limited use/limited application) elevator creates accessibility for all, with less construction costs. The full stainless steel cab and matching automatic doors makes it modern and practical for long-term durability. While the Orion LU/LA hydraulic elevator requires a machine room, its lower overhead and shallower pit requirements made it well suited to the constraints of the existing space.

SPECIFIED ON THIS PROJECT FOR:

Sleek and Simple

Project Specs

Number of Landings: 3
Entrances: 2 (90° access)
Capacity: 1400 lb (635kg)
Nominal Speed: 30 fpm (0.15m/s)
Total Travel: 307" (780cm)
Cab Size: 51" x 51" (1295 x 1295mm)
Pit Depth: 15" (381mm)
Overhead: 120 ¼" (3054mm)
Power Supply: Three-phase, 208 volt, 30 amp
Drive: 1:2 cable hydraulic drive, machine room required
Cab Finish: Stainless Steel
Automatic Two-speed Doors: Stainless steel

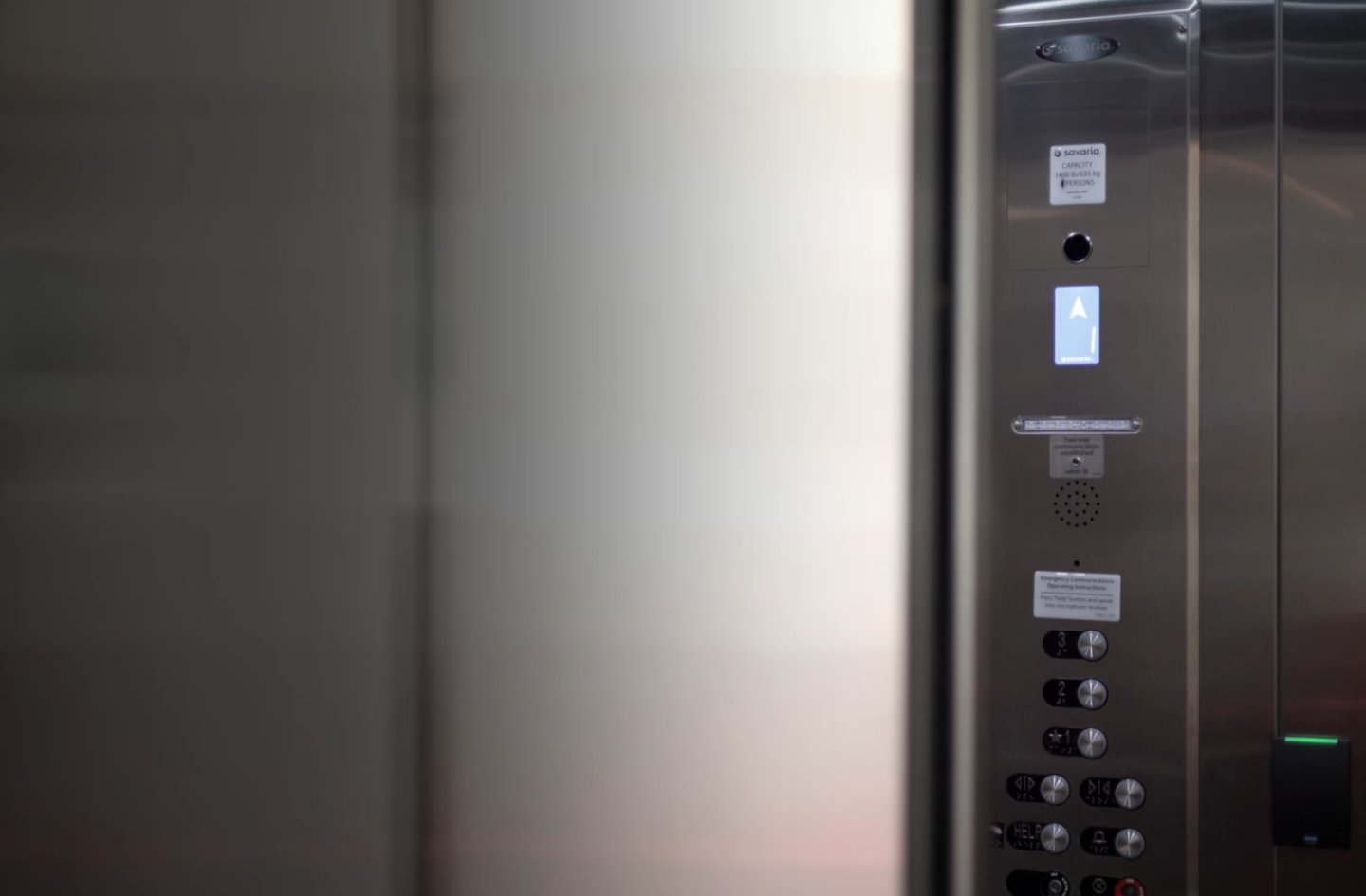

Fixtures Finish: Stainless Steel

Travel distance is limited to 300"/25', but a variance was approved by the local AHJ on this project.
